ABER FUTURA probes

Description

Aber Instruments has a wide range of probes to suit all applications, the 12mm diameter probes ideal for small bioreactors and 25mm diameter for larger vessels, typically used in manufacturing / production environments.

All probes are electro-polished and passivated with options for USP class VI and FDA CFR21 177 certificates. By default a probe is shipped with a standard certificate of traceability. If you wish to have a full breakdown of all the materials used in the production of a probe then please order the ‘Probe Certificate of Conformance’ package for each probe. Contact us if you wish to see an example of the documentation you will receive.

The robustness and proven performance of Aber’s sensors make them the first choice for manufacturing, providing a clear and consistent scalable pathway from R&D and process development all the way through to cGMP manufacturing. This is further enhanced by the 2-year warranty on all reusable sensors with extensive support available from BPES and Aber’s global team.

Please contact us for recommendations on which probe would be most suitable for your application.

ABER FUTURA 12mm probe

All probes are electro-polished and passivated with options for USP class VI and FDA CFR21 177 certificates. By default a probe is shipped with a standard certificate of traceability. If you wish to have a full breakdown of all the materials used in the production of a probe, a ‘Probe Certificate of Conformance’ package is available.

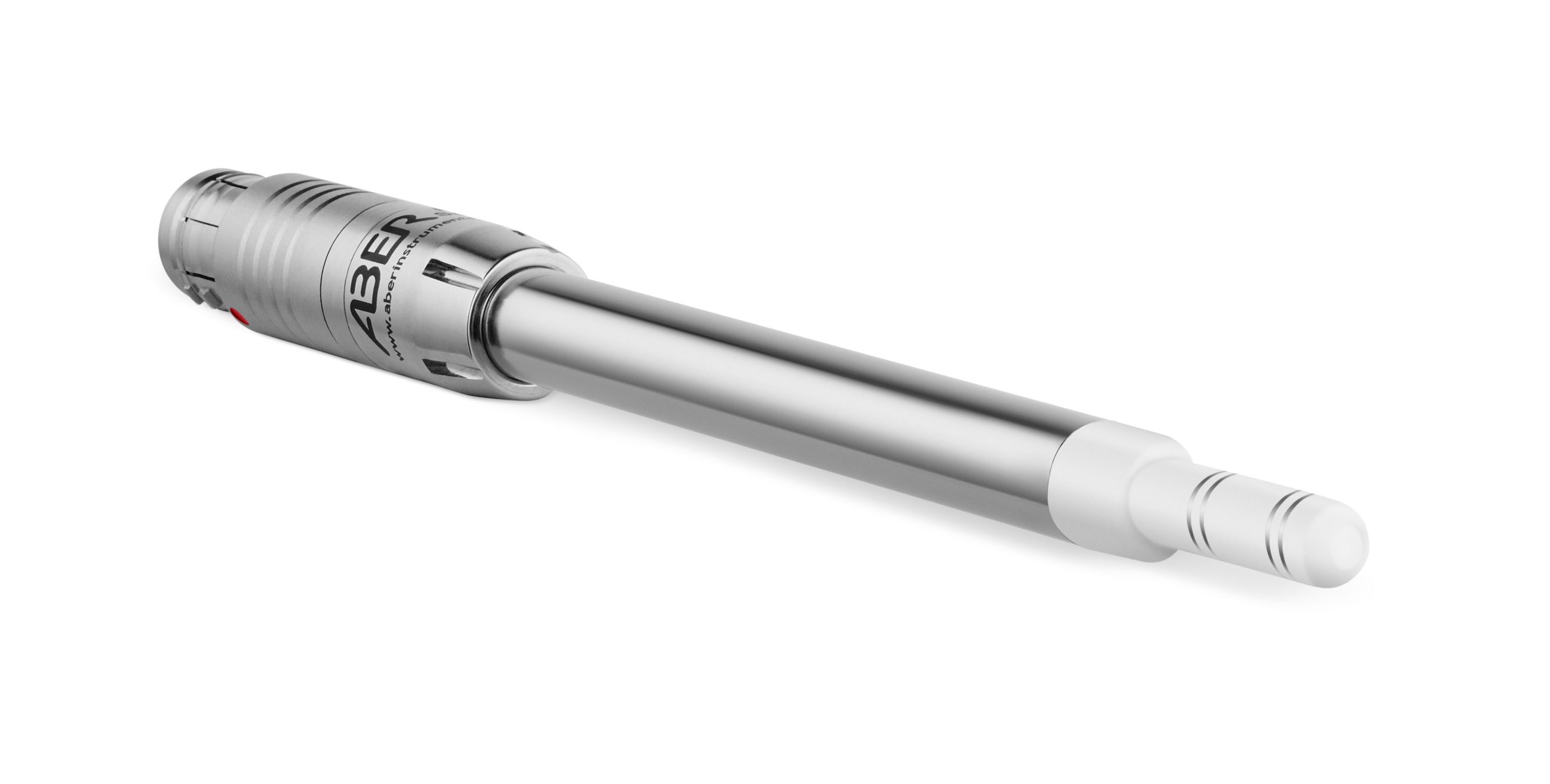

FUTURA 12mm Benchtop Bioreactor Probe - Designed for headplate mounting.
Versatile Annular Probe Lengths - Available in 120mm, 220mm, 320mm, and 450mm to suit different bioreactor volumes.
Headplate Fittings - Offers a range of fittings for seamless integration with your existing system.
Comprehensive Specifications - Refer to the 12mm Annular Probe Product Specification below for detailed options and technical data.

For recommendations on which probe would be most suitable for your application, please contact us.

ABER FUTURA 25mm probe

FUTURA 25mm Probes - Designed for use in larger vessels, commonly found in manufacturing and production environments.

Probe Types - The 25mm probe range includes both flush and annular probe designs to cater to different application requirements.

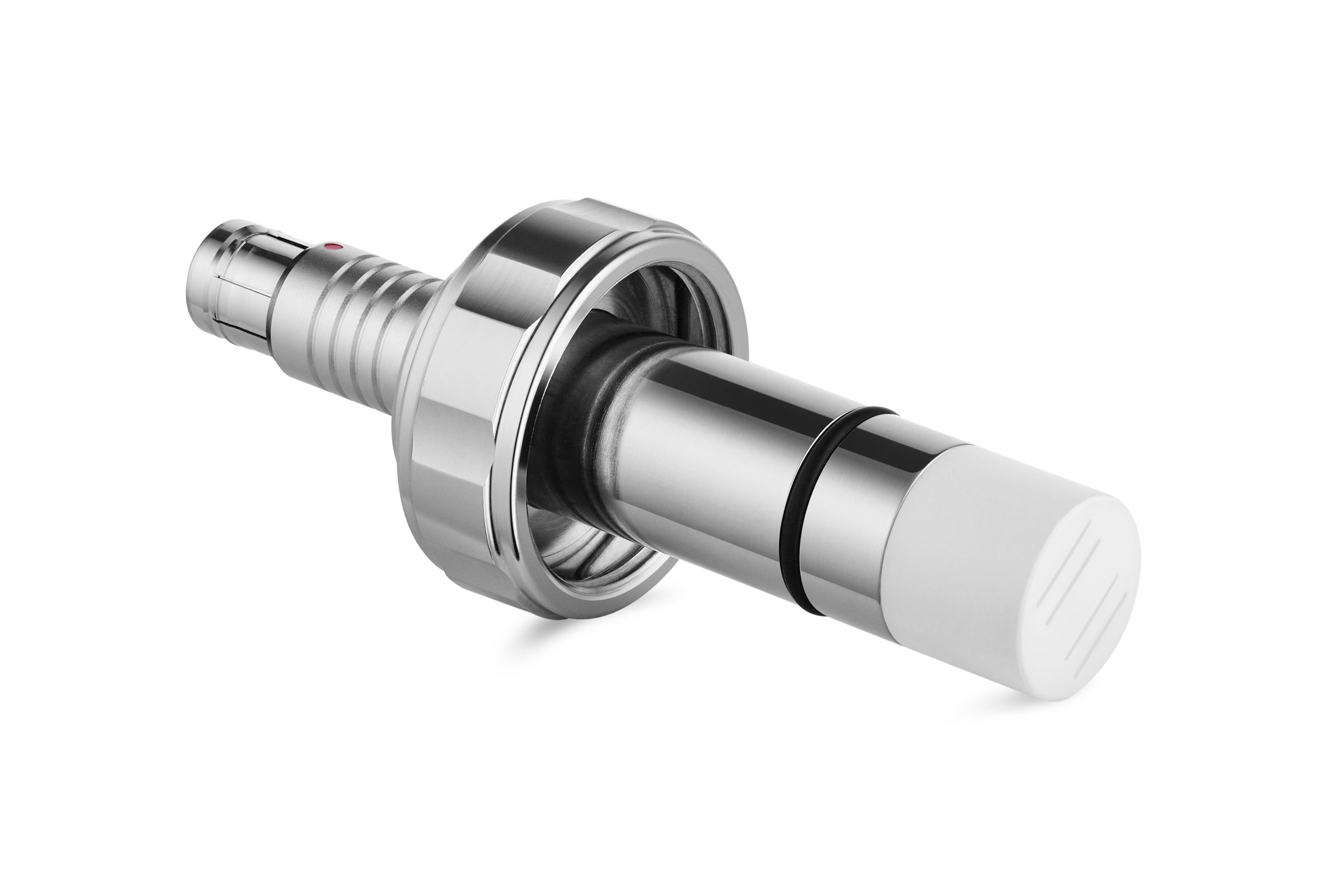

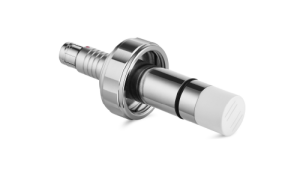

25mm Flush Probes -Available in two lengths (75mm and 175mm), these probes provide connection options with o-ring placement for standard connection types and for Braun safety ports.

25mm Annular Probes - Available in a 96mm length, these probes provide connection options with o-ring placement for standard connection types and for Braun safety ports.

25mm TriClamp Probes: Also available in different geometries

Comprehensive Specifications - Refer to the FUTURA 25mm Probe Product Specifications below for detailed options and technical data.

For recommendations on which probe would be most suitable for your application, please contact us.

Port Adaptors

The port adaptors are designed to allow the 12mm straight Aber probes to be fitted into either Braun or Applikon 19mm (3/4”) top plate, female port fitting. The New Brunswick version is similar but fits a male threaded port on either the top plate or side entry port. The o’rings provide a seal and the nut with nylon ferrules lock the probe in place

FUTURA System Overview

The FUTURA system’s three primary hardware components are:
The Probe, the FUTURA Instrument (Head Amplifier) and the Transmitter.

Widely adopted by the world’s leading biotech companies in both R&D and cGMP, ABER’s products are small and light but deliver powerful capabilities and great application flexibility.
