Description



FEATURES INCLUDE:

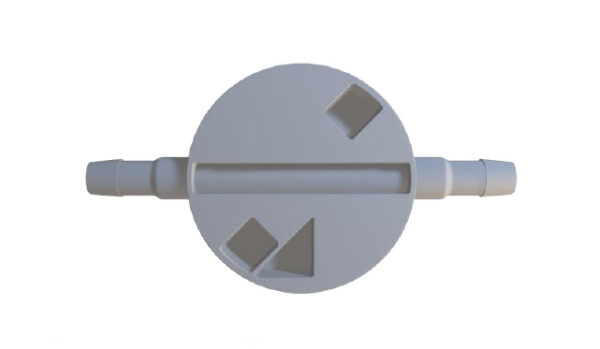

  • Disposable wetted flow path
  • Made of Polycarbonate (LexanTM Resin HPH4404)
  • No individual calibration required
  • No individual calibration needed (no storage or parameters in sensor) -> no individual calibration report 2% of reading between Qmin and Max ± 30ml/min under Min
  • RSS is not forwarded anymore but visible through status codes
  • USB-C port for cable less connection
  • Sizes available (inner diameter): 1/2″ 1/4″ 3/4″ 3/8″ 1″
  • Includes ceramics for ultrasonic measurement
  • Gamma-stable
  • Straight flow path for easy integration
  • Integrated bubble detection
  • Gamma sterilisable up to 50kGy
  • Maximum working pressure 5.1 bar

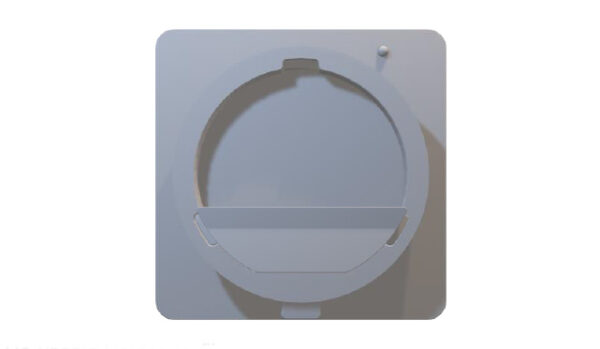

PSG Biotech BioProTT™ FlowSU System

  • Reusable Holder profile
  • Integrated electronics – no further Transmitter needed
  • For panel mounting
  • Tools and Screwless connection with sensors portion
  • Power over Ethernet and same protocol as FlowMCP
  • Incl. Cleaning Cap

More on PSG Biotech

PSG Biotech products are ideal for use in all stages of biopharmaceutical manufacturing – Laboratory, Upstream and Downstream – and in such critical applications as buffer and media preparation, small-scale liquid handling, bioreaction and centrifugation, depth filtration, cell cultivation, chromatography, in-line buffer formulation, tangential flow filtration (TFF), virus filtration and bulk container filling.

Read more

PSG Biotech provide non-invasive flow measurement systems with no product contact for laboratory and industrial bioprocesses.
