Description
- Low pulsation
- Superior containment
- No particle shedding
- High purity
- CIP & SIP (multiple use only)
- Available accessories: Power box, diaphragm sensor, PID pressure controller
- Low shear
- Variable flow
- No particle shedding
- Quiet operation
- USP Class VI

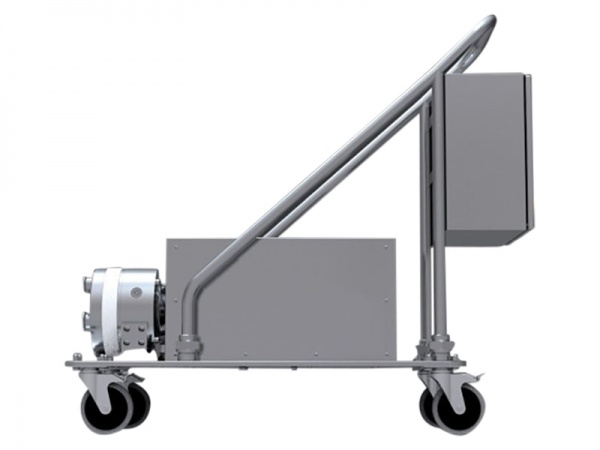

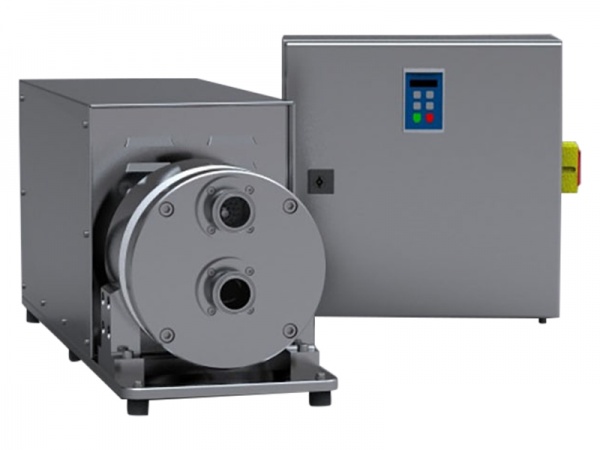

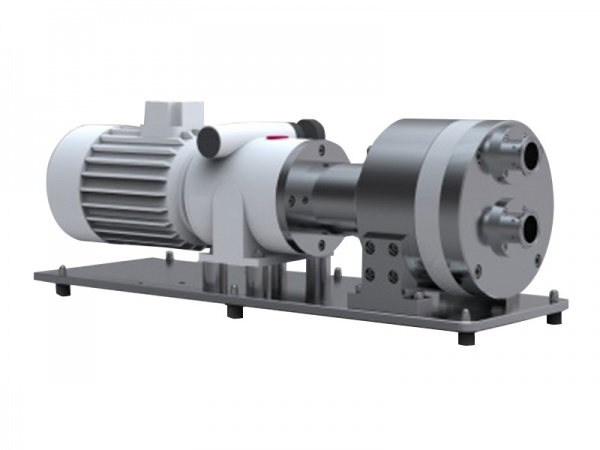

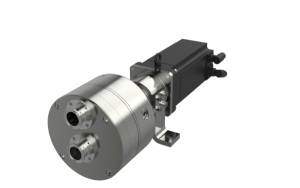

Talk to us about the OEM version. A version of the pump available without housing that can be integrated into a skid.

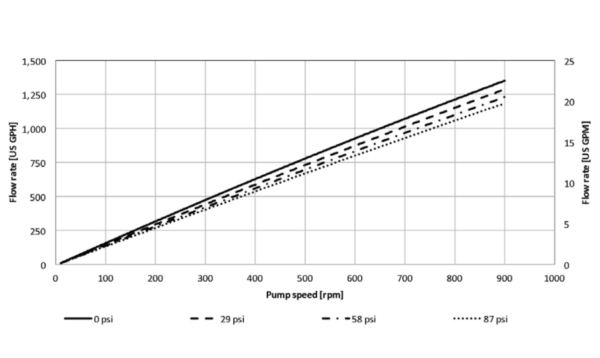

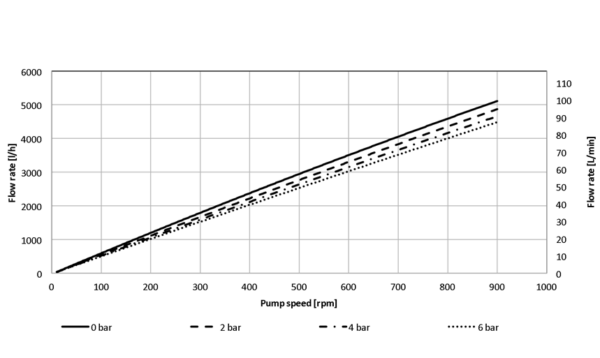

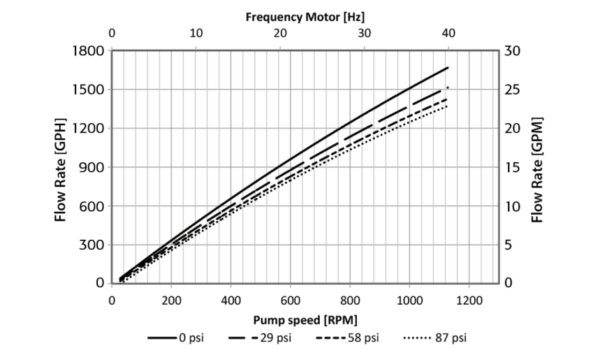

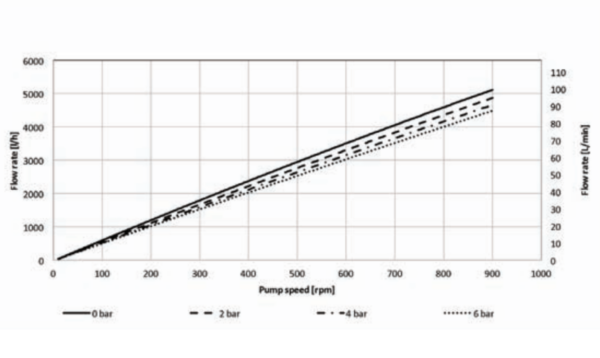

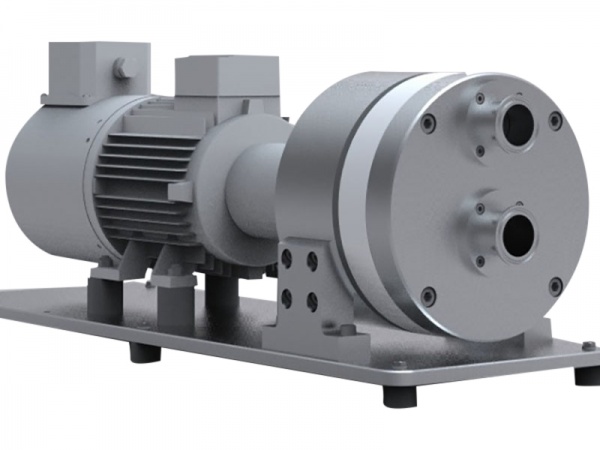

Multi-Use Performance
Multi-Use Technical Data
| QF4400S STANDARD MOTOR | HT STANDARD MOTOR | QF4400MU OEM | ||
|---|---|---|---|---|
| Flow Rate Maximum | Eccentric Shaft 6° | 5000 lph (83 lpm) | 5000 lph (83 lpm) | 5000 lph (83 lpm) |
| Flow Rate Minimum | Eccentric Shaft 6° | 150 lph (2.5 lpm) | 50 lph (0.83 lpm) | 50 lph (0.83 lpm) |
| Pressure | Temperature of Fluid < 40°C (104°F) | 6 bar (87 psi) | 6 bar (87 psi) | 6 bar (87 psi) |
| Temperature of Fluid > 40°C (104°F) | 4 bar (58 psi) | 4 bar (58 psi) | 4 bar (58 psi) | |
| Maximum Temperature | Fluid | 80°C (176°F) | 80°C (176°F) | 80°C (176°F) |
| CIP | 90°C (194°F) | 90°C (194°F) | 90°C (194°F) | |
| SIP | 130°C (266°F) | 130°C (266°F) | 130°C (266°F) | |
| Autoclave | 130°C (266°F) | 130°C (266°F) | 130°C (266°F) | |
| Suction Lift Dry at 1200 rpm | Eccentric Shaft 6° | 4 – 4.5 m (13.1 – 14.7 ft) | 4 – 4.5 m (13.1 – 14.7 ft) | 4 – 4.5 m (13.1 – 14.7 ft) |
| Volume Specifications | Approximated Volume per Revolution at Free Output | 95 ml | 95 ml | 95 ml |
| Filling Volume Without Connectors | 820 ml | 820 ml | 820 ml | |
| Connection Specification (Standard) | Connectors | 1.5″ TC | 1.5″ TC | 1.5″ TC |
| Position of Connectors | Front | Front | Front | |
| Product Wetted Materials (Standard) | Pump Housing | SS316L | SS316L | SS316L |
| Valve Plate | SS316L or PP | SS316L | SS316L | |
| Diaphragms | TPE | TPE | TPE | |
| Valves | EPDM/SS316L | EPDM/SS316L | EPDM/SS316L | |
| O-rings | EPDM | EPDM | EPDM | |
| Certificates/Proofs (Optional) | Elastomere (product wetted) | USP <88> Cl. VI; FDA21CFR177; BSE/TSE Safe | USP <88> Cl. VI; FDA21CFR177; BSE/TSE Safe | USP <88> Cl. VI; FDA21CFR177; BSE/TSE Safe |
| Stainless Steel Parts (product wetted) | 3.1; Surface Roughness; Ferrite Content | 3.1; Surface Roughness; Ferrite Content | 3.1; Surface Roughness; Ferrite Content | |
| Motor (Standard) | Rated speed | 1455 min-1 (50 Hz) | 3000 min-1 (50 Hz) | 3000 min-1 (50 Hz) |
| Voltage | 230 V/400 V | 400 V* | 3 x 230V / 3 x 400V | |
| Power | 2.2 kW | 4.0 kW | — | |
| Pump Dimension with Motor and Housing | Length | 852 mm (33.54″) | 790 mm (31.10″) | 670 mm (26.38″) |
| Width | 250 mm (9.84″) | 275 mm (10.83″) | 225 mm (8.86″) | |
| Height | 333 mm (13.11″) | 393 mm (15.47″) | 233 mm (9.17″) | |
| Pump Weight with Motor and Housing | 120 kg (265 lb) | 90 kg (198 lb) | 66.9 kg (147.5 lb) |

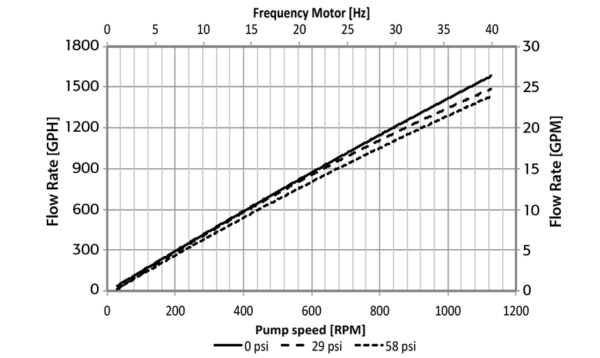

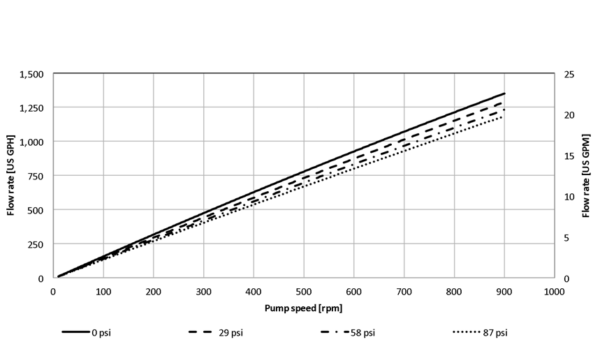

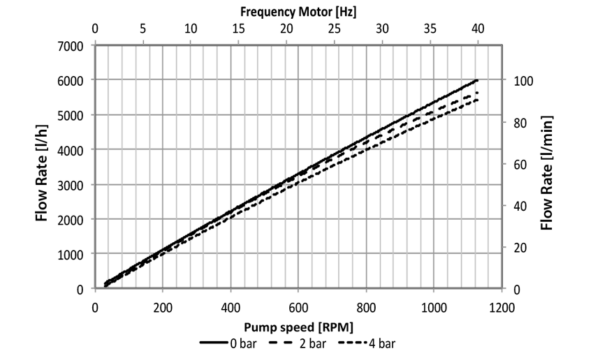

Single-Use Performance
Single-Use Technical Data
| STANDARD MOTOR | QF4400SU | QF4400SU-HT | QF4400SU OEM | |
|---|---|---|---|---|
| Flow Rate Maximum | Eccentric Shaft 6° | 5000 lph (83 lpm) | 5000 lph (83 lpm) | 5000 lph (83 lpm) |
| Flow Rate Minimum | Eccentric Shaft 6° | 150 lph (2.5 lpm) | 50 lph (0.83 lpm) | 50 lph (0.83 lpm) |
| Pressure | Temperature of Fluid < 40°C (104°F) | 4 bar (58 psi) | 4 bar (58 psi) | 4 bar (58 psi) |
| Temperature of Fluid > 40°C (104°F) | 4 bar (58 psi) | 4 bar (58 psi) | 4 bar (58 psi) | |
| Maximum Temperature | Fluid | 60°C (140°F) | 60°C (140°F) | 60°C (140°F) |
| Autoclave | 130°C (266°F) | 130°C (266°F) | 130°C (266°F) | |
| Suction Lift Dry at 1800 rpm | Eccentric Shaft 6° | 4 – 4.5 m (13.1-14.7 ft) | 4 – 4.5 m (13.1-14.7 ft) | 4 – 4.5 m (13.1-14.7 ft) |
| Volume Specifications | Approximated Volume per Revolution at Free Output |
95 ml | 95 ml | 95 ml |
| Filling Volume Without Connectors | 820 ml | 820 ml | 820 ml | |
| Connection Specification (Standard) | Connectors | 1.5″ TC | 1.5″ TC | 1.5″ TC |
| Position of Connectors | Front | Front | Front | |
| Product Wetted Materials (Standard) | Pump Chamber | PP | PP | PP |
| Valve Plate | PP | PP | PP | |
| Diaphragms | TPE | TPE | TPE | |
| Valves | EPDM / SS316L | EPDM / SS316L | EPDM | |
| O-rings | EPDM | EPDM | EPDM | |
| Certificates/Proofs (Optional) | Elastomere (product wetted) | USP <88> Cl. VI; FDA21CFR177; BSE/TSE Safe; USP 87/381/661 |
USP <88> Cl. VI; FDA21CFR177; BSE/TSE Safe; USP 87/381/661 |
USP <88> Cl. VI; FDA21CFR177; BSE/TSE Safe; USP 87/381/661 |
| Motor | Rated speed | 1455 min-1 (50 Hz) | 3000 min-1 (50 Hz) | 3000 min-1 (50 Hz) |
| Voltage | 230/400 V | 400 V | 3 x 230V / 3 x 400V | |
| Power | 2.2 kW | 4.0 kW | – | |
| Pump Dimension with Motor and Housing | Length | 852 mm (33.54″) | 790 mm (31.10″) | 670 mm (26.38″) |
| Width | 250 mm (9.84″) | 275 mm (10.83″) | 225 mm (8.86″) | |
| Height | 333 mm (13.11″) | 393 mm (15.47″) | 233 mm (9.17″) | |
| Pump Weight with Motor and Housing | 105 kg (232 lb) | 75 kg (165 lb) | 50.4 kg (111 lb) | |
Downloads
More on Quattroflow

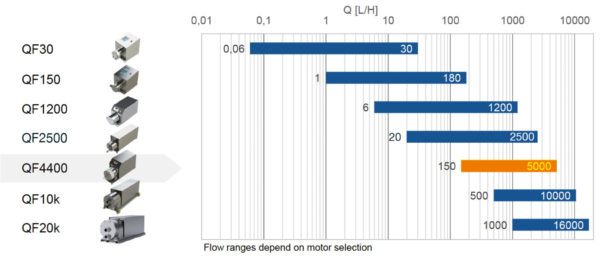

Since launching their first pump in the early 2000s, Quattroflow has established itself as the go-to brand for handling sensitive biopharmaceuticals in applications including chromatography, tangential flow filtration (TFF), and more. With flow rates ranging from 0.06 – 16000LPH, the technology is completely scalable to your application, whether you are in a small scale laboratory or a large scale cGMP suite.
