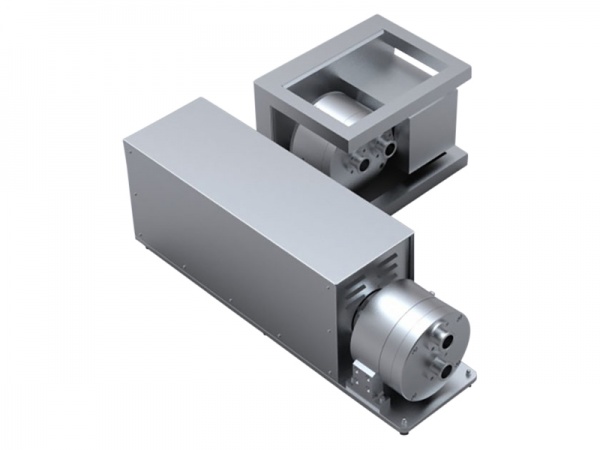

Description
- Minimal maintenance and downtime required
- Low shear
- Variable flow
- High purity
- CIP & SIP (multiple use only)
- Low pulsation
- Superior containment
- No particle shedding
- Quiet operation
- USP Class VI

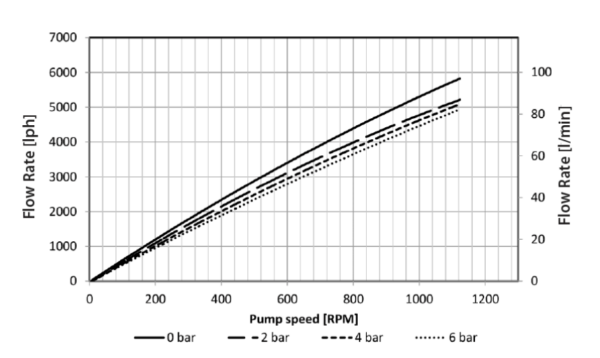

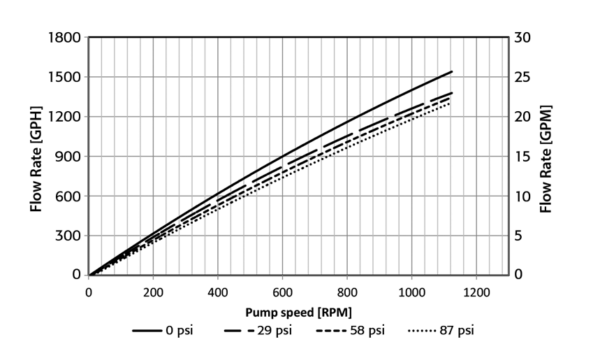

Multi-Use Performance
Multi-Use Technical Data
| QF5050S SERVO MOTOR | ||
|---|---|---|
| Flow Rate Maximum | Eccentric Shaft 6° | 5000 lph (83 lpm) |
| Flow Rate Minimum | Eccentric Shaft 6° | 50 lph (0.83.lpm) |
| Pressure | Temperature of Fluid < 40°C (104°F) | 6 bar (87 psi) |
| Temperature of Fluid > 40°C (104°F) | 4 bar (58 psi) | |
| Maximum Temperature | Fluid | 80°C (176°F) |
| CIP | 90°C (194°F) | |
| SIP | 130°C (266°F)* | |
| Autoclave | 130°C (266°F)* | |
| Suction Lift Dry at 1200 rpm | Eccentric Shaft 6° | 4 – 4.5 m (13.1-14.7 ft) |
| Volume Specifications | Approximated Volume per Revolution at Free Output |
95 ml |
| Filling Volume Without Connectors | 820 ml | |
| Connection Specification (Standard) | Connectors | 1.5″ TC |
| Position of Connectors | Front | |
| Product Wetted Materials (Standard) | Pump Housing | SS316L |
| Valve Plate | SS316L or PP | |
| Diaphragms | TPE | |
| Valves | EPDM/SS316L | |
| O-rings | EPDM | |
| Certificates/Proofs (Optional) | Elastomere (product wetted) | USP <88> Cl. VI; FDA21CFR177; BSE/TSE Safe |
| Stainless Steel Parts (product wetted) | 3.1; Surface Roughness; Ferrite Content | |
| Motor (Standard) | Rated speed | 3000 min -1(2.661 reduction) |
| Voltage | 400 V | |
| Power | 3 kW | |
| Pump Dimension with Motor and Housing | Length | 440 mm (17.32″) |
| Width | 325 mm (12.80″) | |
| Height | 320 mm (12.60″) | |
| Pump Weight with Motor and Housing | 66 kg (146 lb) | |

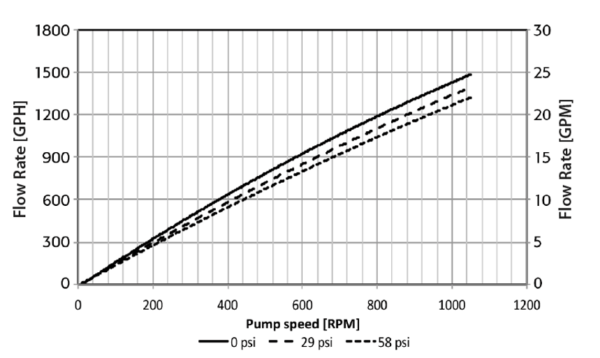

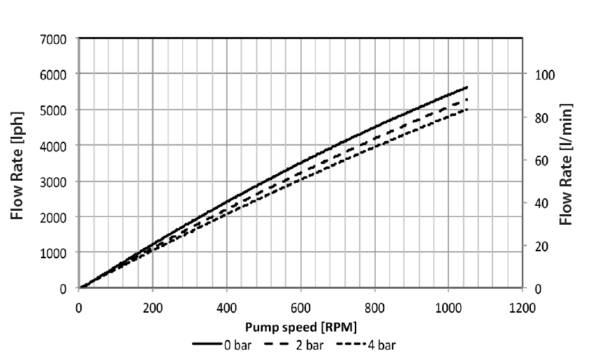

Single-Use Performance
Single-Use Technical Data
| QF5050SU SERVO MOTOR | ||
|---|---|---|
| Flow Rate Maximum | Eccentric Shaft 6° | 5000 lph (83 lpm) |
| Flow Rate Minimum | Eccentric Shaft 6° | 50 lph (0.83.lpm) |
| Pressure | Temperature of Fluid < 40°C (104°F) | 4 bar (58 psi) |
| Temperature of Fluid > 40°C (104°F) | 4 bar (58 psi) | |
| Maximum Temperature | Fluid | 60°C (140°F) |
| Autoclave | 130°C (266°F) | |
| Suction Lift Dry at 1,200 rpm |
Eccentric Shaft 6° | 4 – 4.5 m (13.1-14.7 ft) |
| Volume Specifications | Approximated Volume per Revolution at Free Output |
95 ml |
| Filling Volume Without Connectors | 820 ml | |
| Connection Specification (Standard) | Connectors | 1.5″ TC |
| Position of Connectors | Front | |
| Product Wetted Materials (Standard) | Pump Chamber | PP |
| Valve Plate | PP | |
| Diaphragms | TPE | |
| Valves | EPDM / SS316L | |
| O-rings | EPDM | |
| Certificates/Proofs (Optional) | Elastomere (product wetted) | USP <88> Cl. VI; FDA21CFR177; BSE/TSE Safe; USP 87/381/661 |
| Motor | Rated speed | 3000 min -1 (2.66:1 reduction) |
| Voltage | 400 V | |
| Power | 3 kW | |
| Pump Dimension with Motor and Housing | Length | 440 mm (17.32″) |
| Width | 325 mm (12.80″) | |
| Height | 320 mm (12.60″) | |
| Pump Weight with Motor and Housing | 51 kg (112 lb) | |
Downloads
More on Quattroflow
Since launching their first pump in the early 2000s, Quattroflow has established itself as the go-to brand for handling sensitive biopharmaceuticals in applications including chromatography, tangential flow filtration (TFF), and more. With flow rates ranging from 0.06 – 16000LPH, the technology is completely scalable to your application, whether you are in a small scale laboratory or a large scale cGMP suite.
