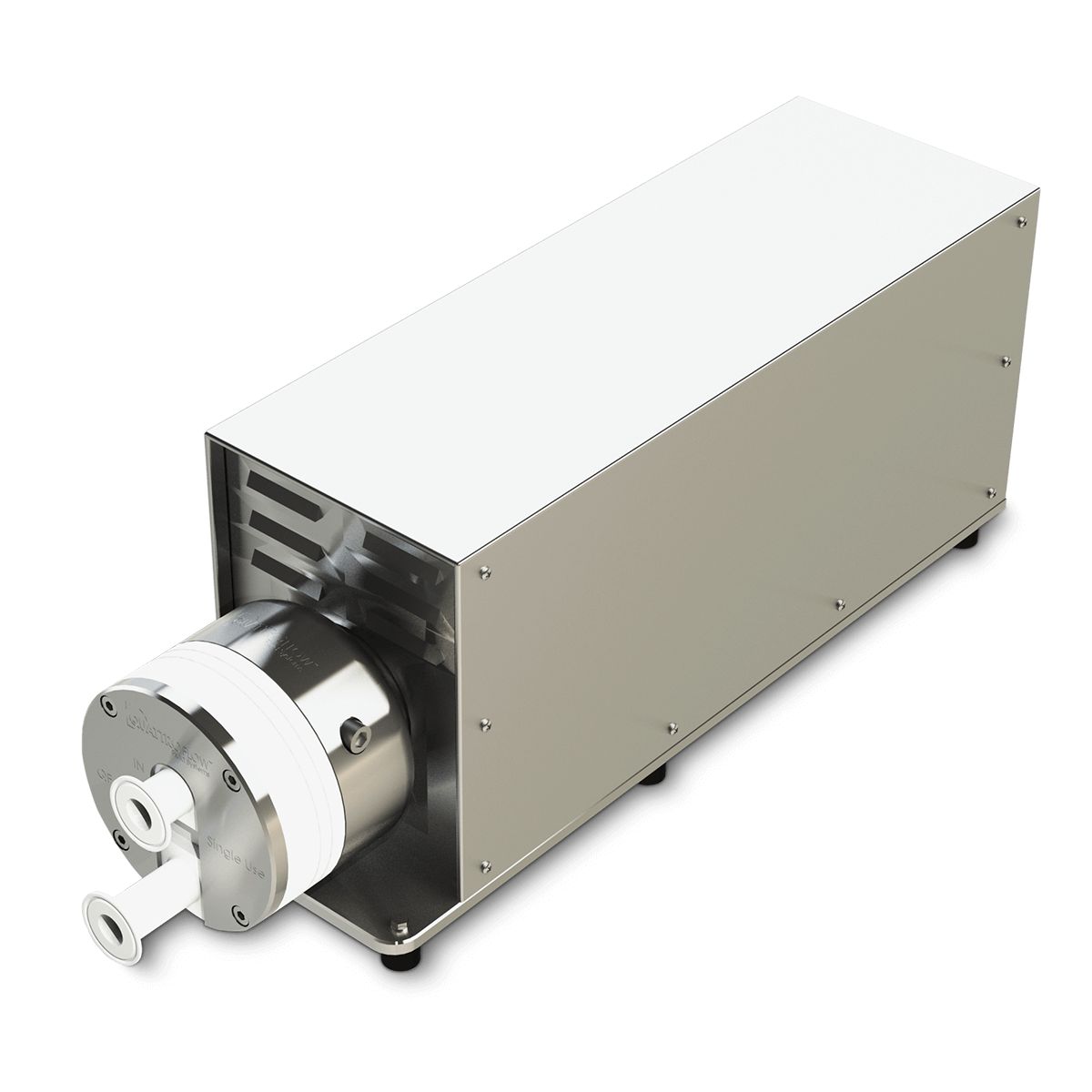

Description
- Minimal maintenance and downtime required
- Low shear
- Variable flow
- High purity
- CIP & SIP (multiple use only)
- Low pulsation
- Superior containment
- No particle shedding
- Quiet operation
- Available accessories: Power box, diaphragm sensor, PID pressure controller

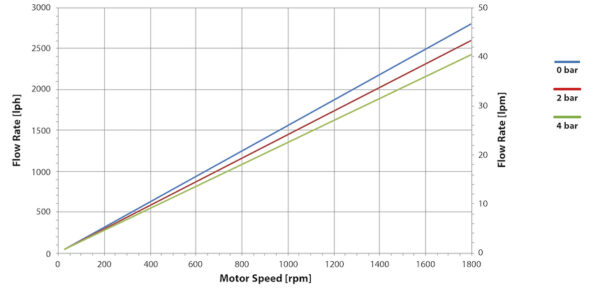

Performance

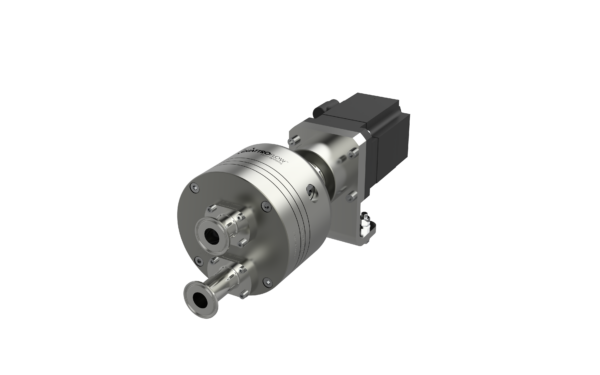

Talk to us about the OEM version. A version of the pump available without housing that can be integrated into a skid.
The Quattroflow range of biotech pumps
Main features and benefits:

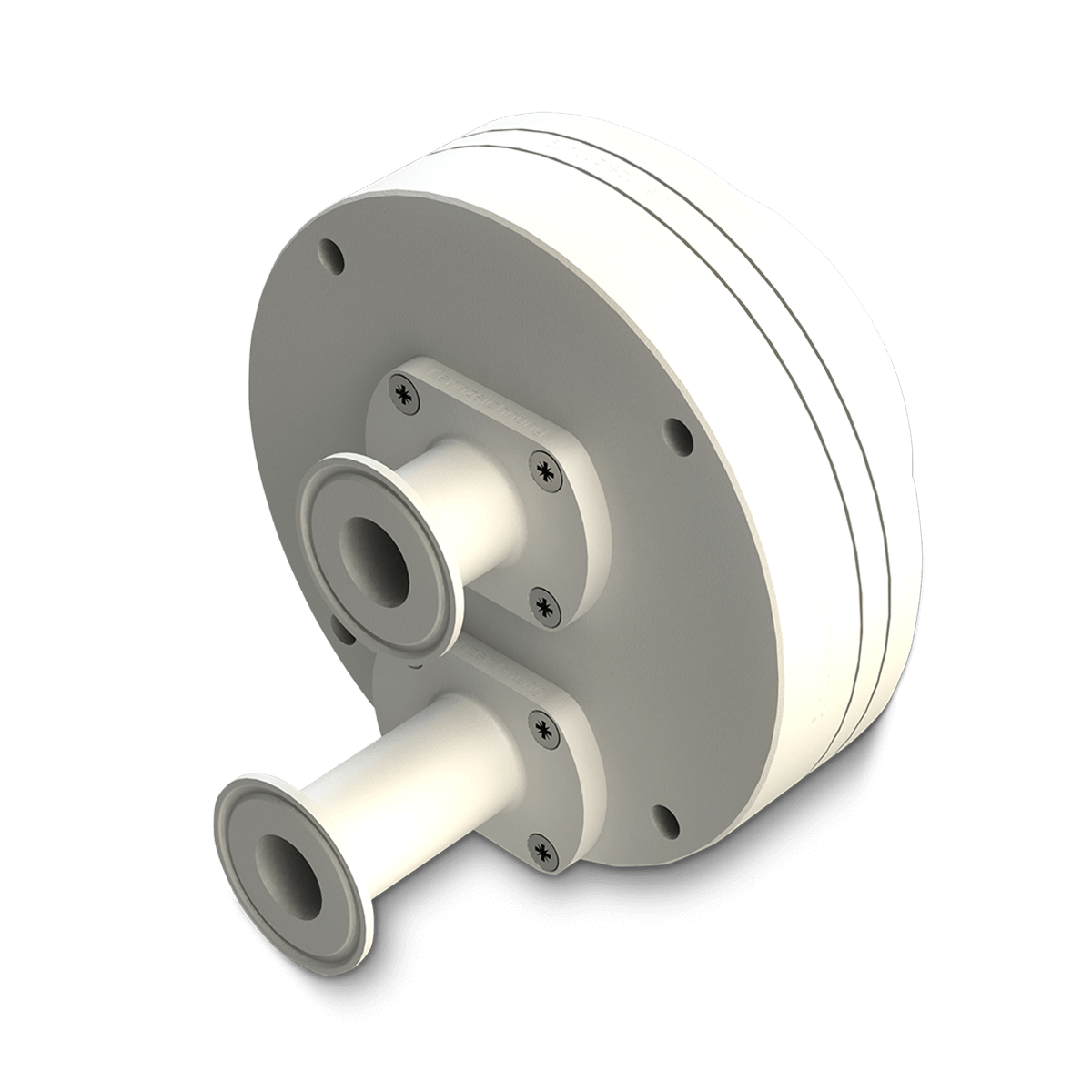

- New pump chamber design (patent pending), available as Multiple-Use and Single-Use model
- Self-draining design
- Up to 125:1 turn-down ratio
- Linear flow performance
- 50-2,500 lph flow range, max. 4/6 bar (58/87 psi)
- High flow stability even at low flow rates
- Clean-In-Place (CIP), Steam-In-Place (SIP), autoclavable

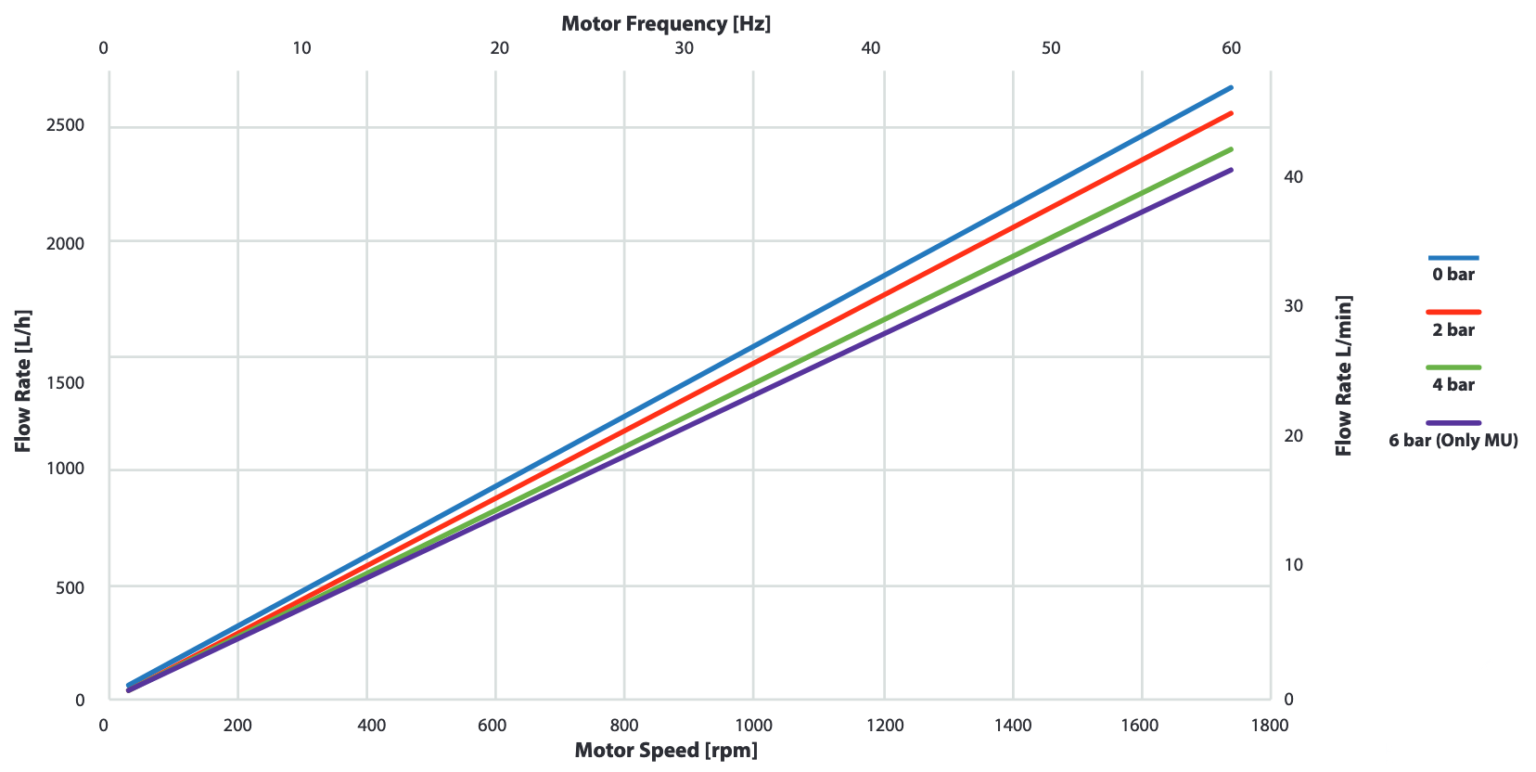

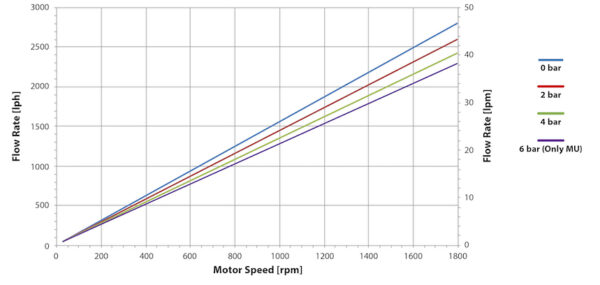

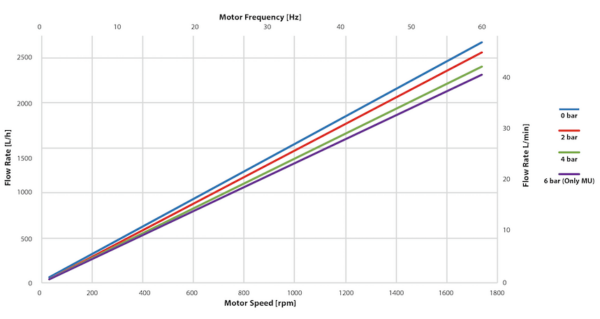

Multi-Use Performance
Multi-Use Technical Data
| QF2500 STANDARD MOTOR | QF2500S-HT STANDARD MOTOR | QF2500MU OEM | ||
|---|---|---|---|---|
| Flow Rate Maximum | Eccentric Shaft 5° | 2,500 lph (41 lpm) | 2,500 lph (41 lpm) | 2,500 lph (41 lpm) |
| Flow Rate Minimum | Eccentric Shaft 5° | 50 lph (0.8 lpm) | 25 lph (0.41 lpm) | 25 lph (0.41 lpm) |
| Pressure | Temperature of Fluid < 40°C (104°F) | 6 bar (87 psi) | 6 bar (87 psi) | 6 bar (87 psi) |
| Temperature of Fluid > 40°C (104°F) | 4 bar (58 psi) | 4 bar (58 psi) | 4 bar (58 psi) | |
| Maximum Temperature | Fluid | 80°C (176°F) | 80°C (176°F) | 80°C (176°F) |
| CIP | 90°C (194°F) | 90°C (194°F) | 90°C (194°F) | |
| Autoclave | 130°C (266°F) | 130°C (266°F) | 130°C (266°F) | |
| Pump Speed Range | rpm | 30-1750 | 20-1800 | 20-1800 |
| Suction Lift Dry at Maximum Speed | Eccentric Shaft 5° | 4 – 4.5 m (13.1 – 14.7 ft) | 4 – 4.5 m (13.1 – 14.7 ft) | 4 – 4.5 m (13.1 – 14.7 ft) |
| Volume Specifications | Approximated Volume per Revolution at Free Output | 27 ml | 27 ml | 27 ml |
| Approximated Filling Volume Without Connectors | 210 ml | 210 ml | 210 ml | |
| Connection Specification (Standard) | Connectors | 1″ TC | 1″ TC | 1″ TC |
| Position of Connectors | Front | Front | Front | |
| Product Wetted Materials (Standard) | Pump Chamber | SS316L | SS316L | SS316L |
| Valve Plate | SS316L | SS316L | SS316L | |
| Diaphragms | TPE | TPE | TPE | |
| Valves | EPDM | EPDM | EPDM | |
| O-rings | EPDM | EPDM | EPDM | |
| Certificates/Proofs (Optional) | Elastomere (product wetted) | USP <88> Cl. VI; FDA21CFR177; BSE/TSE Safe | USP <88> Cl. VI; FDA21CFR177; BSE/TSE Safe | USP <88> Cl. VI; FDA21CFR177; BSE/TSE Safe |
| Stainless Steel Parts (product wetted) | 3.1; Surface Roughness; Ferrite Content | 3.1; Surface Roughness; Ferrite (EN10204) | 3.1; Surface Roughness; Ferrite Content | |
| Motor (Standard) | Rated speed @ 50Hz | 1445 min-1 | 1800 min-1 | 1800 min-1 |
| Voltage | 230/400 V | 400 V | 3 x 230V / 3 x 400V | |
| Power | 1.5 kW | 1.5 kW | — | |
| Pump Dimension with Motor and Housing | Length | 815 mm (32.09″) | 824 mm (32.44″) | 516 mm (20.32″) |
| Width | 215 mm (8.46″) | 275 mm (10.83″) | 187 mm (7.36″) | |
| Height | 295 mm (11.61″) | 382.5 mm (15.06″) | 210 mm (8.27″) | |
| Pump Weight with Motor and Housing | 63 kg (139 lb) | 67 kg (148 lb) | 30.9 kg (68,1 lb) |

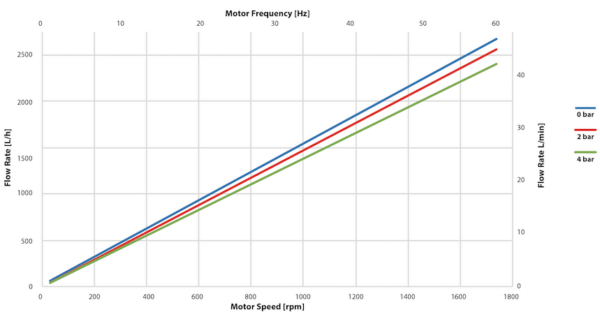

Single-Use Performance
Single-Use Technical Data
| QF2500 STANDARD MOTOR | QF2500SU-HT STANDARD MOTOR | QF2500SU OEM | ||
|---|---|---|---|---|
| Flow Rate Maximum | Eccentric Shaft 5° | 2,500 lph (41 lpm) | 2,500 lph (41 lpm) | 2,500 lph (41 lpm) |
| Flow Rate Minimum | Eccentric Shaft 5° | 50 lph (0.8 lpm) | 25 lph (0.41 lpm) | 25 lph (0.41 lpm) |
| Pressure | Temperature of Fluid < 40°C (104°F) | 4 bar (58 psi) | 4 bar (58 psi) | 4 bar (58 psi) |
| Temperature of Fluid > 40°C (104°F) | 4 bar (58 psi) | 4 bar (58 psi) | 4 bar (58 psi) | |
| Maximum Temperature | Fluid | 60°C (140°F) | 60°C (140°F) | 60°C (140°F) |
| Autoclave | 130°C (266°F) | 130°C (266°F) | 130°C (266°F) | |
| Pump Speed Range | rpm | 30-1750 | 20-1800 | 20-1800 |
| Suction Lift Dry at Maximum Speed | Eccentric Shaft 5° | 4 – 4.5 m (13.1 – 14.7 ft) | 4 – 4.5 m (13.1 – 14.7 ft) | 4 – 4.5 m (13.1 – 14.7 ft) |
| Volume Specifications | Approximated Volume per Revolution at Free Output | 27 ml | 27 ml | 27 ml |
| Approximated Filling Volume Without Connectors | 210 ml | 210 ml | 210 ml | |
| Connection Specification (Standard) | Connectors | 1″ TC | 1″ TC | 1″ TC |
| Position of Connectors | Front | Front | Front | |
| Product Wetted Materials (Standard) | Pump Chamber | PP | PP | PP |
| Valve Plate | PP | PP | PP | |
| Diaphragms | TPE | TPE | TPE | |
| Valves | EPDM | EPDM | EPDM | |
| O-rings | EPDM | EPDM | EPDM | |
| Certificates/Proofs (Optional) | Elastomere (product wetted) | USP <88> Cl. VI; FDA21CFR177; BSE/TSE Safe | USP <88> Cl. VI; FDA21CFR177; BSE/TSE Safe | USP <88> Cl. VI; FDA21CFR177; BSE/TSE Safe |
| Stainless Steel Parts (product wetted) | 3.1; Surface Roughness; Ferrite Content | – | – | |
| Motor (Standard) | Rated speed @ 50Hz | 1445 min-1 | 1800 min-1 | 1800 min-1 |
| Voltage | 230/400 V | 400 V | 3 x 230V / 3 x 400V | |
| Power | 1.5 kW | 1.5 kW | – | |
| Pump Dimension with Motor and Housing | Length | 815 mm (32.09″) | 824 mm (32.44″) | 516 mm (20.32″) |
| Width | 215 mm (8.46″) | 275 mm (10.83″) | 187 mm (7.36″) | |
| Height | 295 mm (11.61″) | 382.5 mm (15.06″) | 210 mm (8.27″) | |
| Pump Weight with Motor and Housing | 56 kg (123 lb) | 60 kg (148 lb) | 23.4 kg (51.6 lb) |
More on Quattroflow

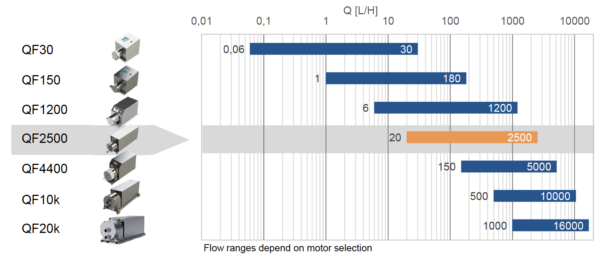

Since launching their first pump in the early 2000s, Quattroflow has established itself as the go-to brand for handling sensitive biopharmaceuticals in applications including chromatography, tangential flow filtration (TFF), and more. With flow rates ranging from 0.06 – 16000LPH, the technology is completely scalable to your application, whether you are in a small scale laboratory or a large scale cGMP suite.
