Description

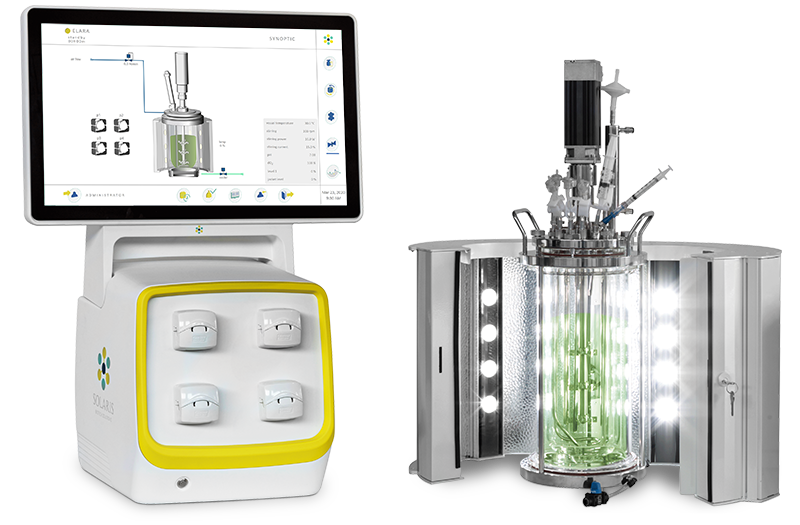

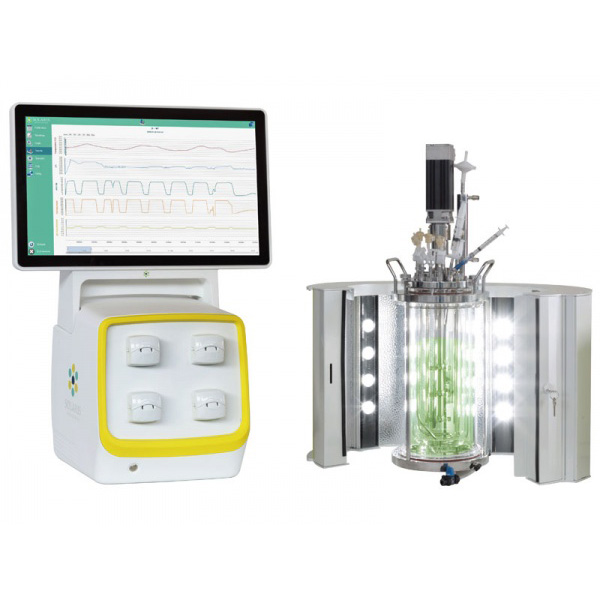

The Solaris Elara ST
Single & parallel autoclavable stirred photobioreactor
- 4 L total volume borosilicate glass vessel, 3:1 H/D ratio.
- Different configurations available, with the choice of Rushton/Marine/Pitched-Blade impellers, and Toro/Sintered sparger.
- Wide range of measurement and control options, including temperature, pH, dO 2 , dCO 2 , redox, antifoam, level, conductivity, weight, cell density (viable cells).
- Modbus digital sensors reduce background noise and guarantee quick response time.
- Suitable for batch, fed-batch and continuous processes.
FIND OUT MORE:
- Compact and modular PLC-based PCS LEM_1 , with n. 4 built-in fixed speed Watson Marlow pumps. Variable speed pumps can be integrated as option.
- Powerful and accurate (1 RPM) brushless motor.
- Optional integration of up to 4 analog input/output connections, choosing between 0-10 V and 0-20 mA/4-20 mA (e.g. pumps or valves with power supply independent from Solaris electrical cabinet).
- Different gas mixing strategies with up to 5 TMFC and/or solenoid valves.

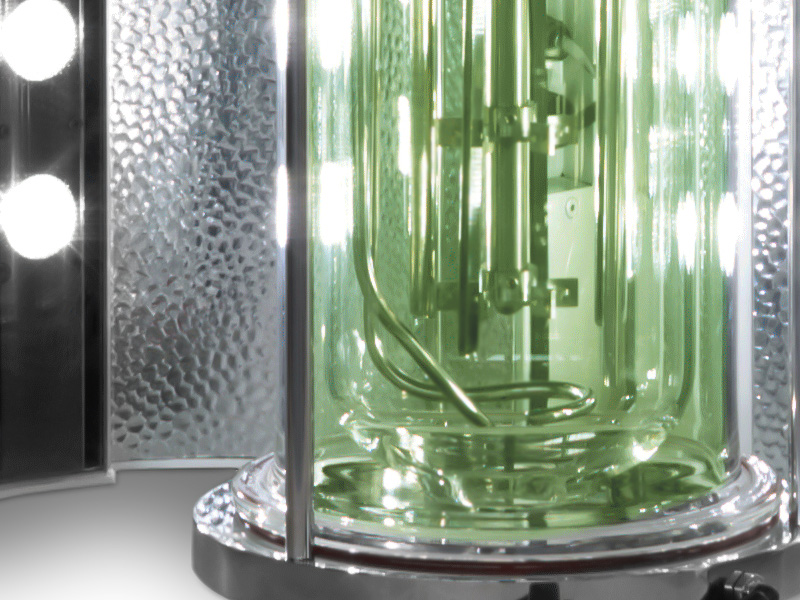

- Fully removable and cleanable glass jacket for improved heat transfer during autoclaving.
- LEDA Sterile sampling system, which allows up to 180 sterile samplings per batch, is available as option.
- Light module consisting of n.3 vertical bars with 6 white dynamic LEDs each; Each LED consists of four chips: n.2 dedicated to warm white light (2700 K) and n.2 for cool white light (6500 K)
- LED total power: 180W; LED brightness: 6120 lm.
- Automatic and manual control of light intensity and circadian cycle simulation.
- The light spectrum is selectable, and the light intensity is dimmable from 0-100% up to 3000 μmol(photon)/m2.
Solaris ELARA Software
- Innovative SCADA software LEONARDO 3.0: a smart and user-friendly controller designed to provide a high level of automated management of the fermentation/cultivation processes.
- Full version included in the equipment supply.
- Up to 24 units managed in parallel with a unique HMI (24”).
- Data extraction in .csv format.
- Remote access via PC, tablet or smartphone, with QR code scanning or dedicated portal.
- Remote control for after sale assistance.
Downloads
More on Solaris
Solaris Biotech benchtop fermenters and bioreactors offer efficient platforms for R&D and product development applications. Their broad range of products are flexible and easy to use, ensuring there is always a solution specific to your needs and requirements – from research scale of a few hundred ml up to cGMP production of > 2000L.
Benefits include compact and user friendly designs, parallel software platform, up-to-date and open communication protocols.
The product range is used in universities, schools and research centres, as well as in pharma, nutraceutical, cosmeceutical, chemical, agricultural, and food and beverage industries, not to mention bioplastics and biofuels applications.
Solaris Tangential Flow Filtration (TFF) systems, fully automated within the Kronos product line, combine industrial elements and a compact design. For larger scale TFF applications open to customisation, consider the Tytan platform.
